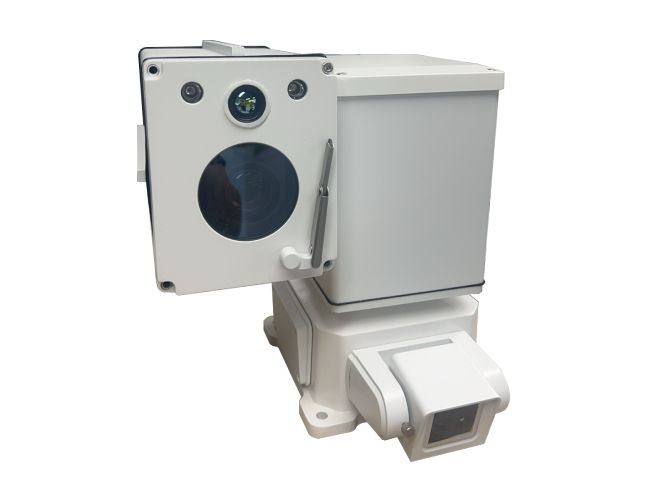

Pan-Tilt-Zoom Video Imaging & Infrared Dual-Spectrum Surveillance Device for Transmission Lines
The device features high-definition imagery to realize clear visualization of distant scenes during wildfire surveillance and fine details in connector inspections. Its day-night dual-mode operation guarantees uninterrupted 24/7 monitoring, with stable infrared capture and snapping functions across all lighting conditions. Advanced intelligent recognition algorithms rapidly analyze dual-spectrum data while integrating temperature readings from thermal imaging to precisely identify potential hazards such as smoldering fires, overheated connectors, and electrical arcing. Instant alerts enable prompt intervention of operation and maintenance personnel while rapid response capabilities document critical events instantly, providing vital diagnostic evidence for post-incident analysis.
- Information
Application Scenarios
UHV/EHV transmission lines, critical crossings (over railways, highways & important channels), lines in dense forest areas, strain towers, construction sites, and other high-risk areas.
Technical Parameters
| Camera： | The device is equipped with a channel camera (high-definition optical lens + night vision module) and a pan-tilt-zoom (PTZ) camera (high-definition zoom lens + infrared thermal imaging sensor), adopting an all-in-one integrated design that does not permit disassembly. |
| Channel camera: | 1) High-definition optical camera: Industrial-grade HD camera with resolution ≥16MP; optional optical filter supporting defogging capability; auto-focus functionality enabled. 2) Night vision camera: Starlight-level low-illumination camera with minimum 2MP resolution; operates under extreme low light conditions (0.001Lux/F1.2). 3) Real-time analysis: 24h intelligent processing system triggers automated PTZ repositioning for secondary verification upon alarm events. |
| Pan-tilt-zoom camera: | 1) High-definition zoom lens: Industrial-grade HD camera with resolution ≥2MP; supports 30x optical zoom capability. 2) Infrared thermal imaging lens: Resolution ≥640×512; focal length ≥19mm; color palette options include White Hot, Black Hot, Fusion Mode 1/2, Rainbow Spectrum, Iron Red Mode 1/2, totaling 15 display presets . |
| PTZ mechanism | It enables full-circle panning (horizontal 0°–360°) and tilting from -90° to +90°, ensuring complete visual coverage across all elevation angles from the mounting position. Equipped with defogging technology for optimal image capture and thermal imaging performance during low-visibility conditions like haze or mist. Features an integrated windshield wiper system triggered manually via backend controls to maintain lens clarity in rainy weather. Includes lens heating function to prevent snow/ice accumulation on optical surfaces during freezing precipitation events. |
| Power supply mode: | Solar power + battery backup |
| Reliability: | MTBF ≥25,000 hours |
| Protection rating: | IP66 |
| Entire device power consumption: | ≤5W |
