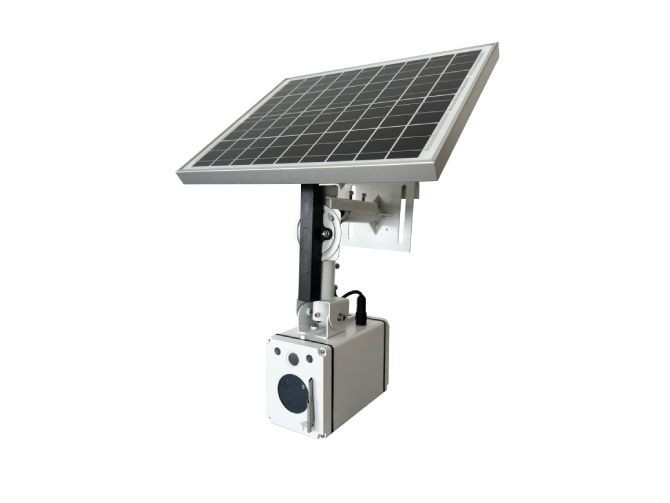

Transient Fault Proactive Capture Device for Transmission Lines
Primarily utilized in image/video monitoring for power lines, this device employs active capture technology to instantly trigger high-speed photography upon detecting spatial electromagnetic signals along the circuit. It reliably captures images of line faults and lightning flashover events with minimal power consumption.
- Information
Application Scenarios
UHV/EHV transmission lines, critical crossings (over railways, highways & important channels), lines in dense forest areas, strain towers, construction sites, wetlands, aquaculture ponds/greenhouse regions.
Technical Parameters
| Operational power consumption: | ≤1.5W |
| Standby power consumption: | Capable of normal heartbeat transmission and command reception, ≤0.05W |
| Image format for transient fault capturing: | .jpeg format |
| Number of images per transient event: | Configurable, default setting is 3 images |
| Trigger response time for transient fault capturing: | ≤8μs |
| Communication method: | Support China Telecom 4G, China Mobile 4G, China Unicom 4G |
| Power supply mode: | Solar power + lithium battery backup |
| Protection rating: | IP66 |
