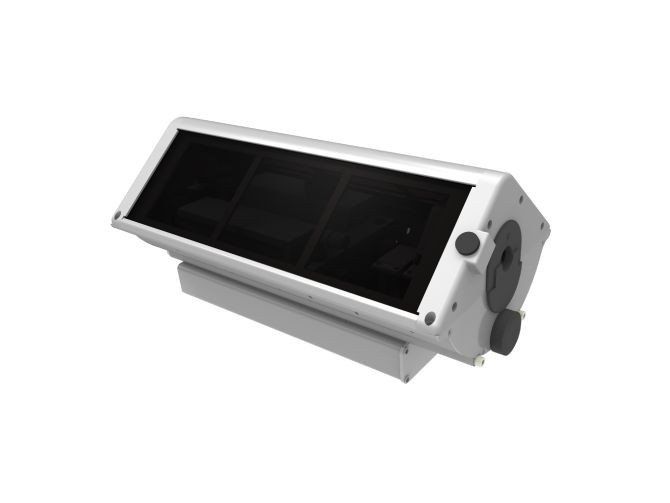

Integrated De-icing Monitoring System for Transmission Line Ground Wires
The system integrates advanced sensor technology, power supply systems, high-speed data acquisition, and communication technologies into a unified platform. Deployed along ground wires, it performs real-time analysis and collection of both steady-state and transient current signals. This enables precise fault location identification for both pre-existing faults before ice melting operations and emerging faults during the de-icing process.
- Information
Application Scenarios
Lines requiring ground wire ice melting operations.
Technical Parameters
| Location accuracy: | ≤±300m |
| Sampling frequency: | ≥2MHz |
| Traveling wave measurement range: | 1A-5000A |
| Operating power supply: | Solar power supply |
| BeiDou time synchronization accuracy: | ≤0.1μs |
| Communication mode: | APN/4G |
| Protection rating: | IP66 |
