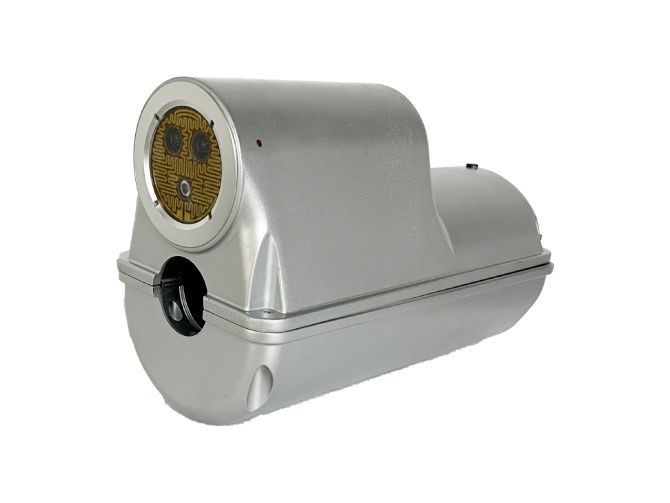

High-Potential Intelligent Icing Monitoring Device for Transmission Lines
Equipped with advanced image recognition algorithms and high-precision sensors, the device accurately identifies ice accumulation on transmission lines. By conducting comparative analysis of continuously captured images, it enables real-time monitoring of changing ice thickness and precise measurement of ice growth rates. When detected ice thickness approaches or exceeds preset safety thresholds, the system immediately issues alerts, prompting operation and maintenance personnel to intervene with de-icing measures. This proactive prevention effectively avoids critical failures such as conductor fracture or tower tilting caused by excessive icing, ensuring secure and stable operation of power transmission networks.
- Information
Application Scenarios
Lines requiring ice accumulation monitoring.
Technical Parameters
| Energy acquisition method: | AC inductive power harvesting + battery power supply |
| Maximum heating power: | 25W |
| Device weight: | ≤8.5kg |
| Line applicability range: | AC 10kV-1000kV |
| Startup current: | 20A |
| Conductor applicability range: | 185mm2-800mm2 |
| Max AC inductive power: | 20-1000A (single conductor) |
| Ambient temperature sensing range: | -40℃-+50℃ |
| Conductor temperature measuring range: | -40℃-+120℃ |
| Camera: | High-definition image ≥16MP (no interpolation allowed); night vision module ≥2MP (no interpolation allowed); edge computing capability integrated; automated ice thickness recognition via image analysis. |
| Communication method: | Support China Telecom/Unicom/Mobile nationwide 4G networks, WiFi connectivity, APN access |
| Protection rating: | IP66 |
