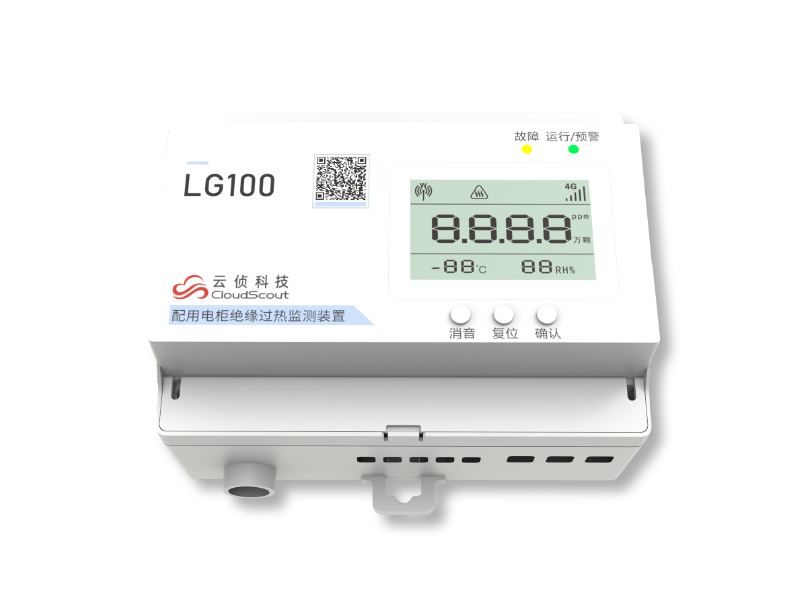

Distribution Cabinet Insulation Overheating Monitoring Device
This device is specially designed for scenarios such as switch cabinets, data racks, and control cabinets, enabling early warning and precise location of overheating hazards within each cabinet.
- Information
Application Scenarios
Switch cabinets, data racks, control cabinets, etc.
Technical Parameters
Particle diameter detection range: | 100nm-20μm |
Particle detection resolution: | 1×10⁴ particles |
| Equipment sensitivity: | 0.0001-20 %obs/m |
Ambient temperature monitoring: | Range: -20℃-60℃; Accuracy: ±1℃; Resolution: 0.5℃ |
Ambient humidity monitoring: | Range: 0-95%RH; Accuracy: ±5%RH; Resolution: 1%RH |
| Gas detection types: | ≤2 kinds (optional) |
Sampling lines & method: | 24h real-time active sampling; max 1 channel |
Early warning functions: | Gas alarm + 5-level particle alarm + temperature alarm |
| Device dimensions: | 108*80*50 mm |
Communication method: | Wireless (optional)/RS485/relay |
Communication protocol: | 4G, ModBus |
Operating power supply: | AC220V/DC24V |
| Safety certifications: | EMC Level IV |
