High-Voltage Cable Outer Sheath Monitoring System

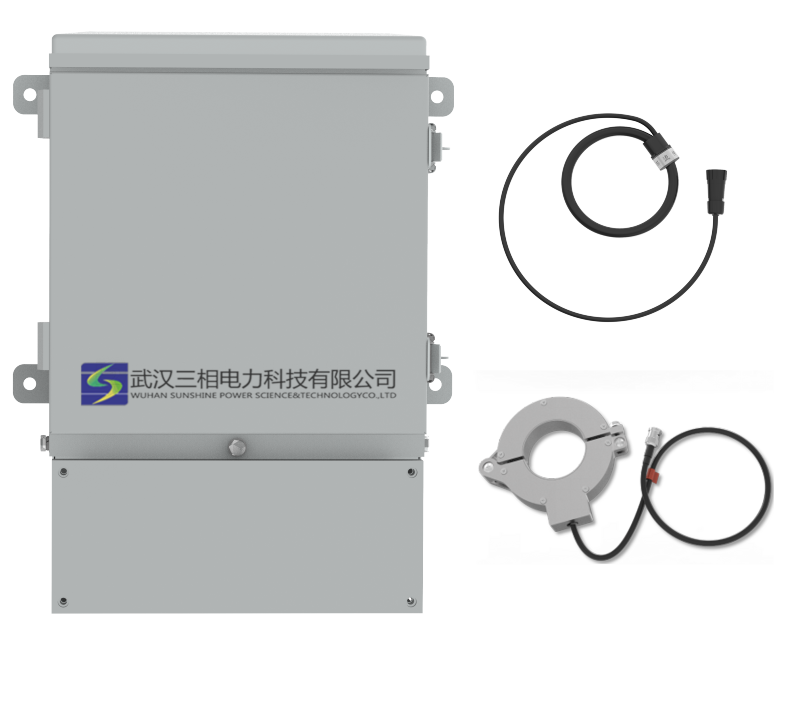

The monitoring system integrates a power frequency circulating current acquisition unit, enabling scheduled collection and uploading of phase-to-ground current data for precise measurement of ground loop currents. By analyzing numerical ranges and trend patterns, operators gain insights into cable operating conditions. When abnormal ground loop currents are detected, the system automatically triggers alarm notifications. This technology replaces traditional manual periodic circulation inspections, significantly reducing on-site labor intensity while enhancing maintenance efficiency.
- Information
Application Scenarios
High-voltage cables of 110 (66) kV and above within primary and secondary cable tunnels; high-voltage cables of 330 kV and above inside tunnels; vital cable corridors (such as urban lifelines, primary/secondary priority pathways, railways, rail transit, airports); cable terminal towers, etc.
Technical Parameters
Circulating current monitoring range: | 0-500A |
Load current monitoring range: | 0-2000A |
Sampling accuracy: | 1% |
Communication method: | Wireless/wired |
Operating power supply: | Coupling power extraction, AC 220V, solar power, etc. |
Protection rating: | IP66 |
