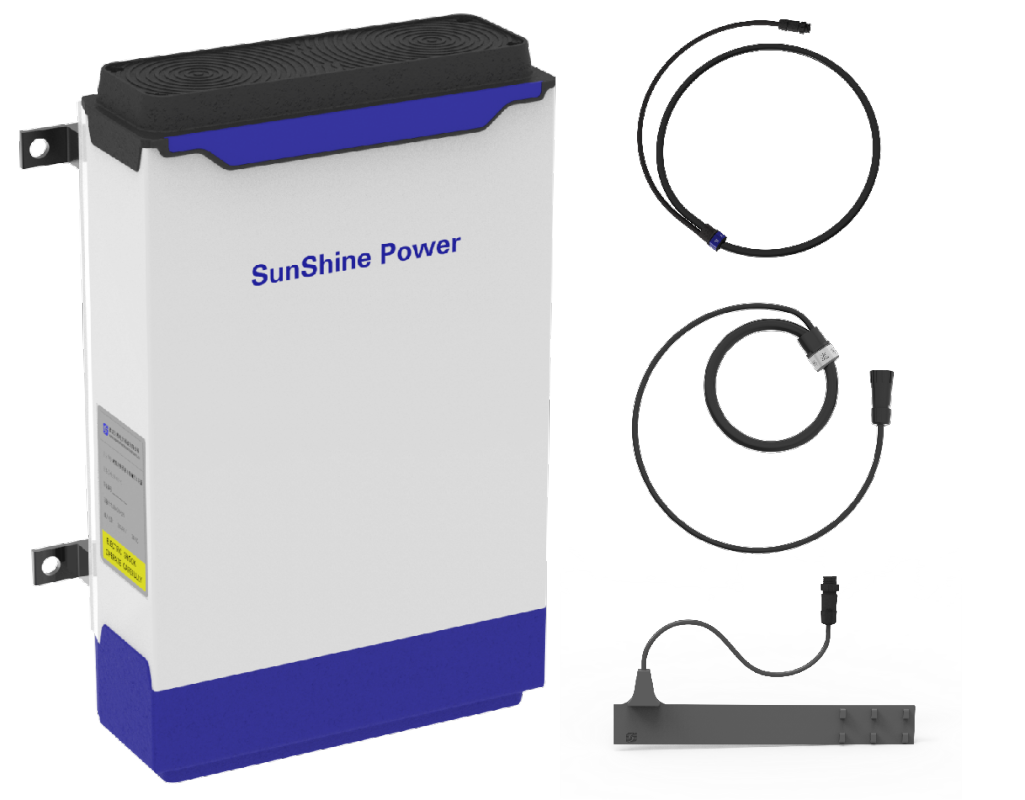

High-Voltage Cable Fault Early Warning and Precise Positioning System (SP3000)
The monitoring system utilizes online detection technology to capture traveling waves generated by latent discharge activities and fault-induced discharges propagating bidirectionally along the cable. It accurately locates the positions of such discharge points, enabling early warning for potential hazards in the cable line and rapid online fault location.
- Information
Application Scenarios
Cable lines rated at 35kV and above. Key applications include hybrid overhead-cable lines, T-connected lines; critical cable routes, high-risk sections.
Technical Parameters
Fault diagnosis success rate: | ≥95% |
| Fault interval location accuracy rate: | ≥99% |
Comprehensive fault location error: | ≤0.2%*L+5m (L is the cable length between the devices) |
Fault tripping alarm response time: | ≤5min |
Fault positioning diagnosis time: | ≤10min |
| Hazard discharge early warning sensitivity: | ≤1mA |
| Power supply mode: | Inductive power harvesting + solar power/AC 220V |
Communication mode: | Wireless/wired |
Protection rating: | IP66 |
